Detalhes do produto:
Condições de Pagamento e Envio:
|

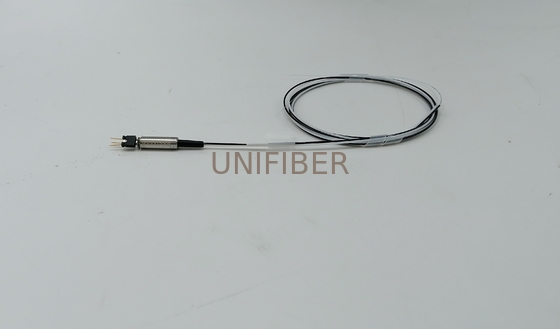

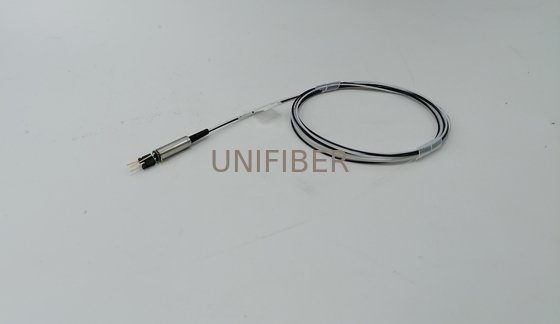

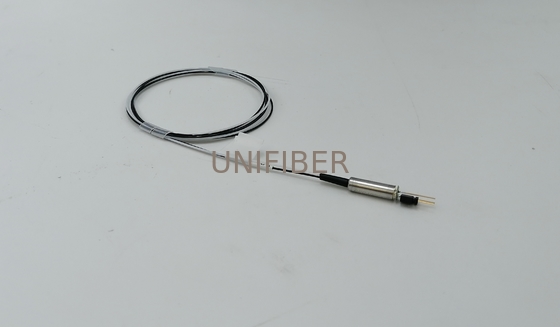

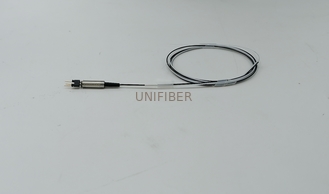

| Product: | SM MEMS VOA | Wavelength: | 1310nm |
|---|---|---|---|
| Attenuation Type: | Bright Type | Voltage: | 5V |
| Power handling: | 500 MW | Application: | Channel On/off Switching |
Variable Optical Attenuator (VOA) based on microelectromechanical systems (MEMS) is an important component to achieve power regulation in all-optical networks. it can realize comprehensive remote control of all-optical networks.
| Parameter | Specification | Unit | Note |
|
Wavelength Range |
1064 | nm | |
| 1310 | nm | O Band | |
| 1530~1570 | nm | C band | |
| 1570~1610 | nm | L band | |
| Attenuation Type | Bright or Dark | - | |
| Attenuation Range | ≥30 | dB | For Single Mode |
| Attenuation Range | ≥20 | dB | For Multi Mode |
| Insertion Loss | ≤0.7 | dB | |
| Attenuation Resolution | Continuous | - | |
| Wavelength Dependent Loss | ≤0.3 | dB | @<0 dB Att. |
| Polarization Dependent Loss | ≤0.1 | dB | @<0 dB Att. |
| Temperature Dependent Loss | ≤0.7 | dB | @<0 dB Att. compare with RT |
| Return loss | ≥45 | dB | For Single Mode |
| Respnse Time | ≤2 | ms | 10-90%optical power |
| Optical Power Handing | 500 | mW | |
| Driving Voltage | 6.5 or 15 | V | |
| Power Consumption | ≤2 | mW | |
| Operation Temperature | 0~70 | ℃ | |
| Storage Temperature | -40~85 | ℃ |
