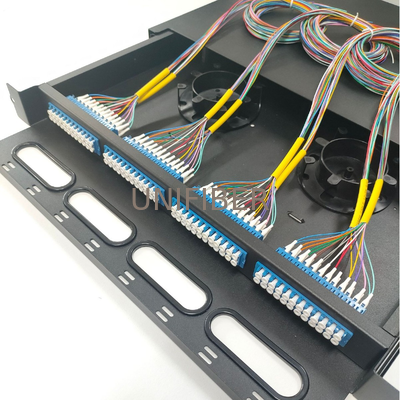

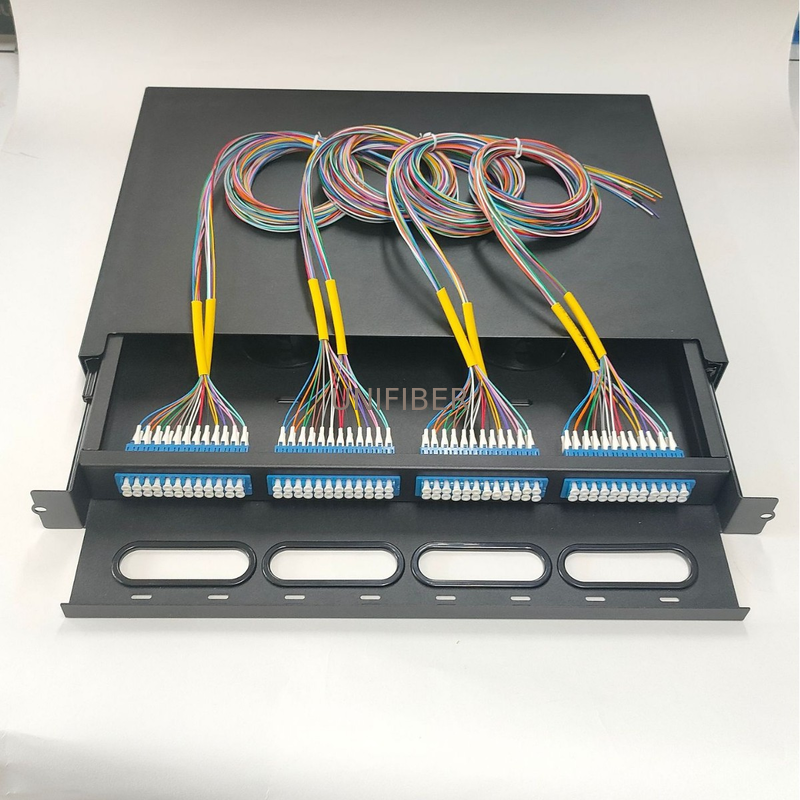

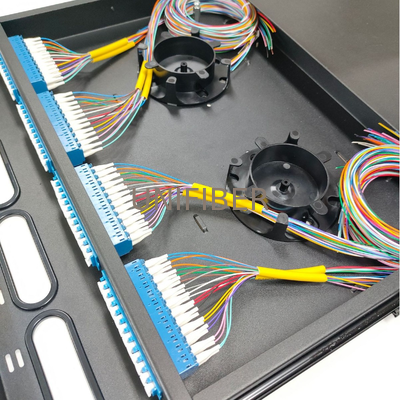

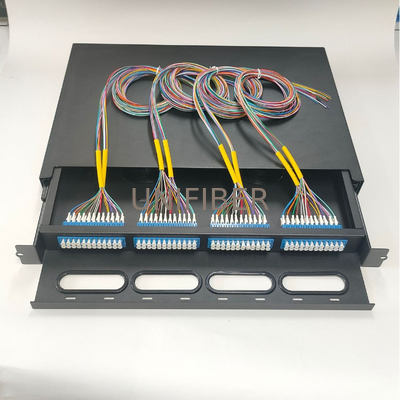

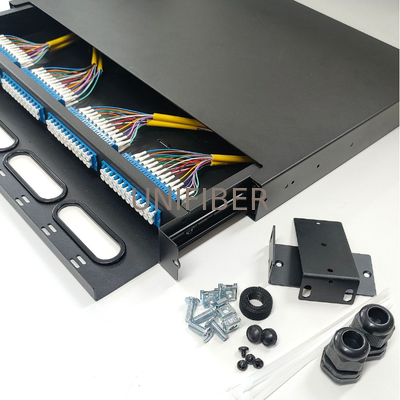

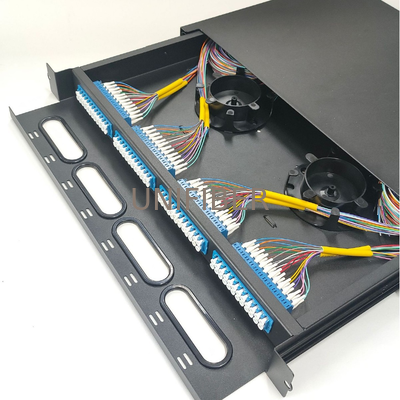

1U 19-inch 96 Ports LC Fiber Distribution Panel

CHINA Shenzhen Unifiber Technology Co.,Ltd Certificações
CHINA Shenzhen Unifiber Technology Co.,Ltd Certificações
Estou Chat Online Agora

1U 19-inch 96 Ports LC Fiber Distribution Panel

1U 19-inch 96 Ports LC Fiber Distribution Panel
1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel

Imagem Grande :  1U 19-inch 96 Ports LC Fiber Distribution Panel

Detalhes do produto:
Lugar de origem: China
Marca: Unifiber or OEM
Certificação: ROHS
Número do modelo: Painel de distribuição de fibra LC de 96 portas
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 10
Preço: Negociável
Detalhes da embalagem: Caixa de papelão
Tempo de entrega: 3 a 5 dias
Termos de pagamento: L/C, T/T
Habilidade da fonte: 100 unidades/dia
Descrição de produto detalhada
Produto: Painel de distribuição de fibra LC 1U de 19 polegadas e 96 portas Não dos portos: 96 portos
Tipo de adaptador: Duplex lc Número de bandejas: 2
Capacidade da bandeja: 48 núcleo Material: Aço laminado a frio
Cor: Preto
Destacar:

1U 19-inch fiber distribution panel

,

96 ports LC fiber patch panel

,

rack mount fiber optic panel

1U 19-inch 96 Ports LC Fiber Distribution Panel
This 1U 96 Port HD Fiber Optic Patch Panel supports 4 interchangeable adapter modules for LC or SC connectors. It can accommodate fiber splicing for up to 96 fibers with 2x 48F splicing trays and also supports 4x MPO/MTP cassette modules. This panel provides an ideal high-density cable management solution for modern data center environments.
Applications
  • Data Center Infrastructure
  • Fiber Channel Networks
  • Storage Area Networks
  • Emerging 40G and 100Gbps Protocols (Compatible)
Key Features
  • Supports MPO/MTP cassette modules for high-density applications
  • Accommodates up to 96 single fiber splices
  • Includes 2 splice trays, each supporting 48 fiber splices
  • Features 4 separate interchangeable adapter plates
  • Standard unit structure compatible with various cabinets and racks
  • Multiple optical cable entry points with enlarged inlets for easy cable routing
  • Secure cable fixation using optical cable fixing columns or metal reinforcements
Technical Specifications
Model Number 1U 96 Port HD Fiber Optic Patch Panel
Max Capacity 96 Ports
Cassettes Compatible 4x 24 adapter module
Connector Type Duplex LC, SC or MPO/MTP
Pre-Connection Optional
Material SPCC (Cold Rolled Steel Sheet)
Finishing Powder Coated Matt Black
Dimension (mm) 482.6*363.2*1U/2U
Operation Temperature -20℃ ~ 70℃
1U 19-inch 96 Ports LC Fiber Distribution Panel 0
